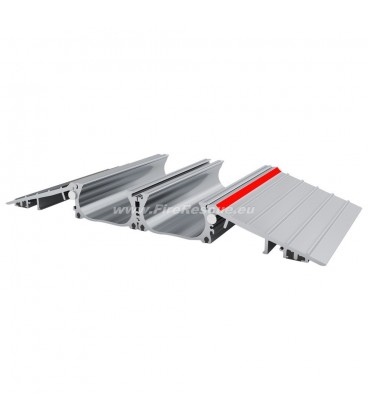

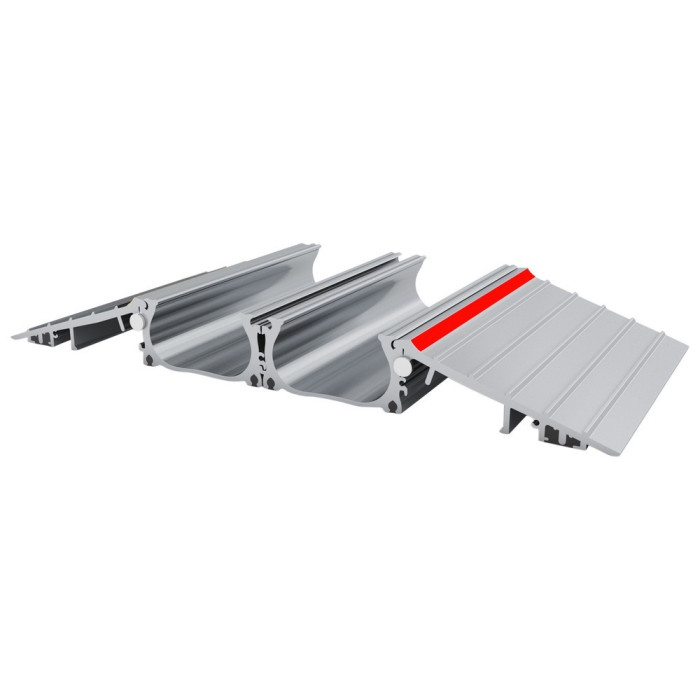

MODULE HOSE BRIDGE TYPE 2B-4M

Expand your hose bridge module system to your liking and adapt the bridge to your needs directly at the place of use.

More details

PRO-211702
New product

449,83 €

- +

Add to compare


More info

Expand your hose bridge module system to your liking and adapt the bridge to your needs directly at the place of use. No matter what distance or how many hoses you need - with this system you are ready for any eventuality. The hose bridges are designed for hoses up to max. 75 mm diameter.

Due to the special shape of the hose channel, a drive-over height of only 60 mm can be achieved. The hose is pressed into the channel by the tire precisely and without loss of flow or damage.

With only one ramp, the system can also be used on sidewalk edges.

Characteristics:

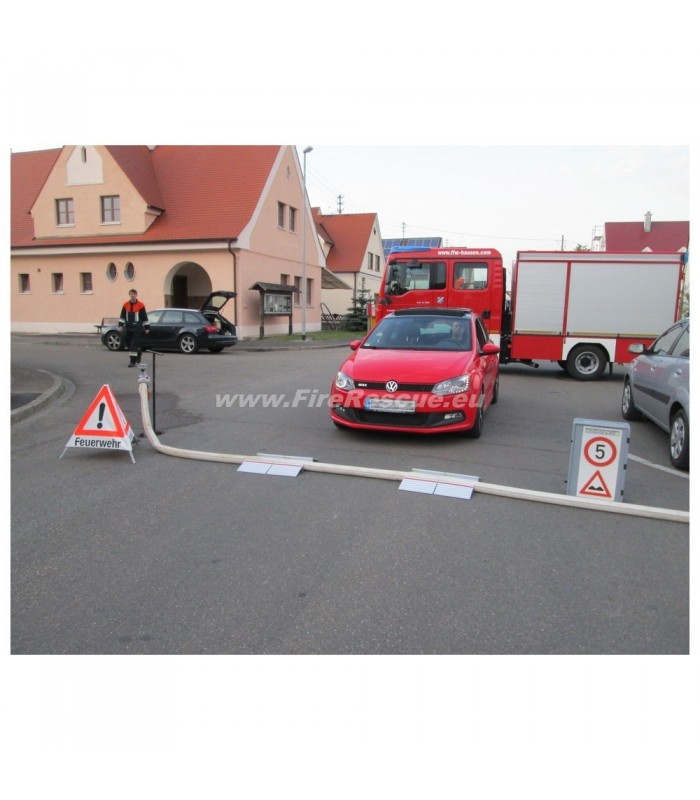

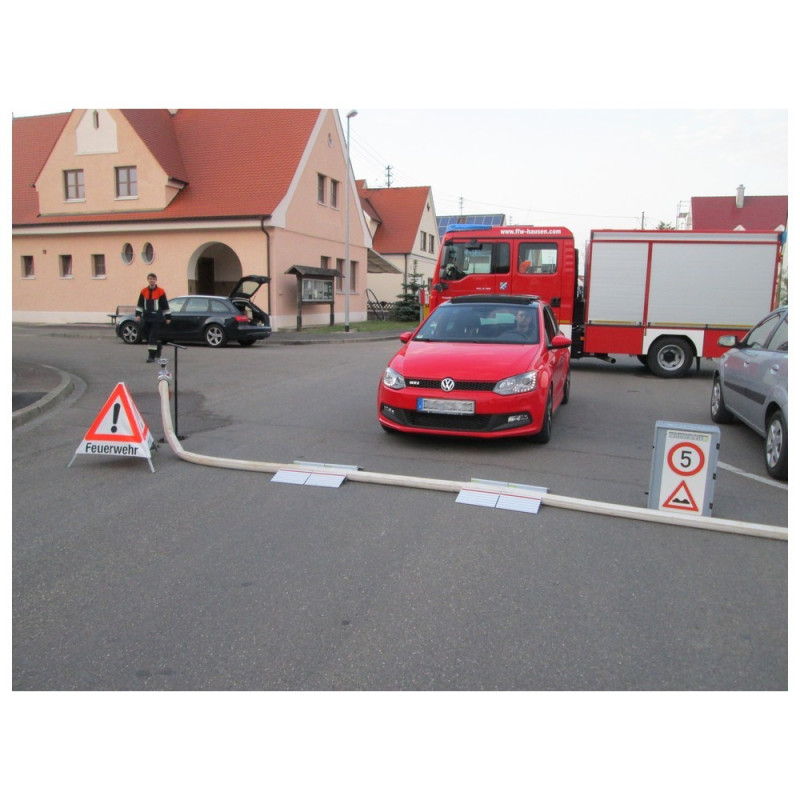

- Only 60 mm height (easy driving over all types of vehicles)
- Expandable module system (need less ramp parts)
- Light weight (the lightest on the market)
- Less space required
- Also applicable to sidewalk edges

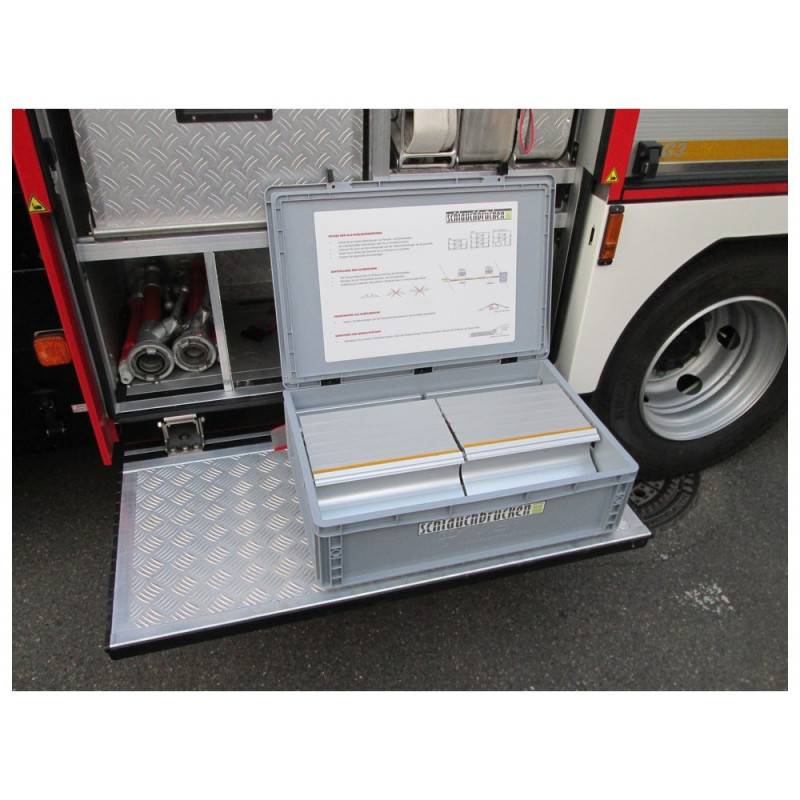

- Care u. Installation instructions on the inside of the lid

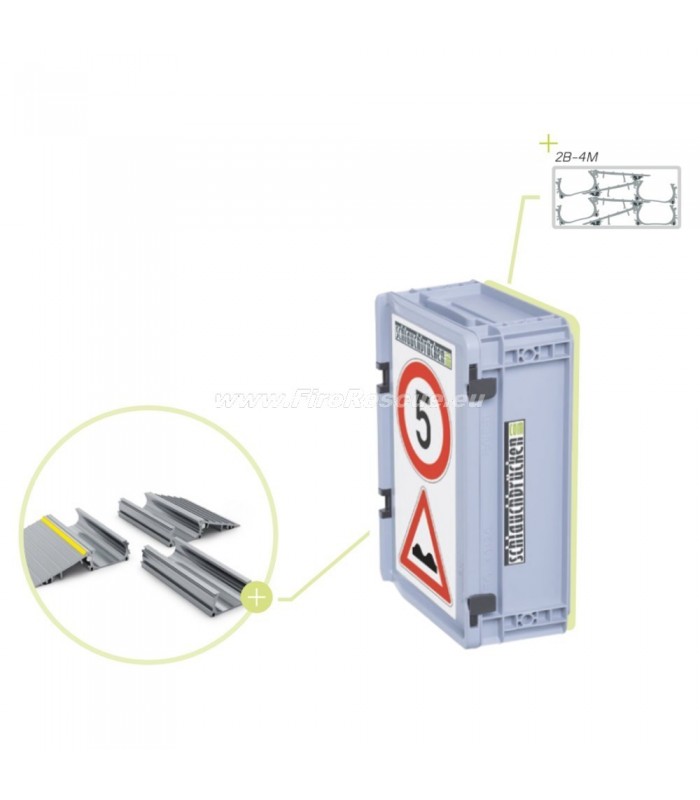

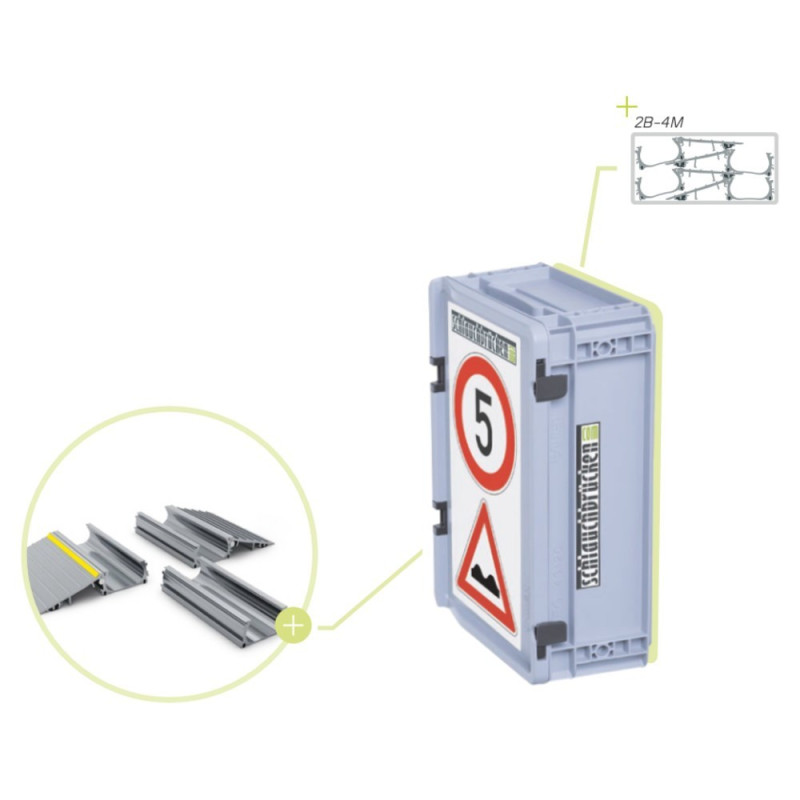

- Transport box is used as a traffic sign
- Can also be used as a cable bridge

Delivery:
- 1 piece transport box
- 8 pieces of hose tunnel elements
- 8 piece ramp elements


Data sheet
DimensionsTransport box: 60 x 40 x 18.5 cm
Weight21.70 kg
MaterialAluminium
Max. Load20 t
